Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels

    Buy cheap Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels from wholesalers

    Buy cheap Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels from wholesalers
    • Buy cheap Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels from wholesalers
    • Buy cheap Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels from wholesalers

    Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels

    Ask Lasest Price
    Brand Name : Shandong Hermann Biological Engineering Co,.Ltd
    Model Number : Hermann-1000L
    Certification : CE, ISO 9001, TUV
    Price : Negotiable
    Supply Ability : 30 set per month
    Delivery Time : 50 Working Days
    • Product Details
    • Company Profile

    Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels

    Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels


    Advantage

    1) Automatic /semi-automatic operation system ,need one or two brewer operate

    2) with our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes

    3) we have different capacity from 50L to 10000L per batch , our brewery equipment approved PessureCE, ISO ,ROHS,TUV certificate

    4) have good feedback from our clients

    5) Installation/Operation/ Service/ Maintenance Manual: Provided In English.


    Beer brewing equipment are usually independently owned. Such breweries are

    generally characterized by theire empahsis on flavor and brewing technique. We supply

    microbreweries from 500L to 3500L per brew. Our service includes:complete

    microbrewery equipment, installation, recipes of branded beers, staff training etc.

    If necessary, it can be expanded in future.

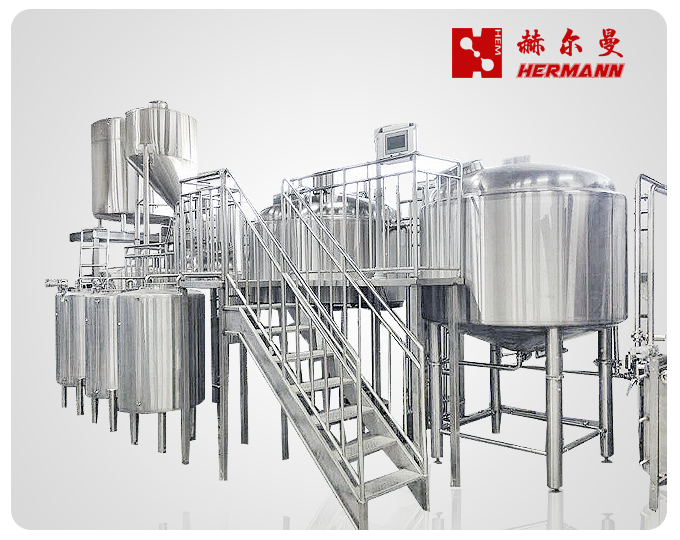

    Brewhouse System is mainly composed by mash tun,lauter tun, boil/whirlpool tun, hops adding equipment etc.


    The main body of brewhouse system all using international standards, high-quality 304 stainless steel. The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding and other technology. External matte polished to ensure customers with high quality and low price, beautiful mash system.


    Mash System
    Mash tun,Lauter tun
    1:Total capacity 1300 litres,Effective capacity 1000 litres;
    2:Size:Φ With reference to the drawings;
    3:Heat Insulation:Polyurethane-thickness:80mm;
    4:Inner 3.0mm/external 2.0mm(Wire drawing);
    5:Torispherical head:3.0mm Precision polishing;
    6:Cone:3.0mm ;

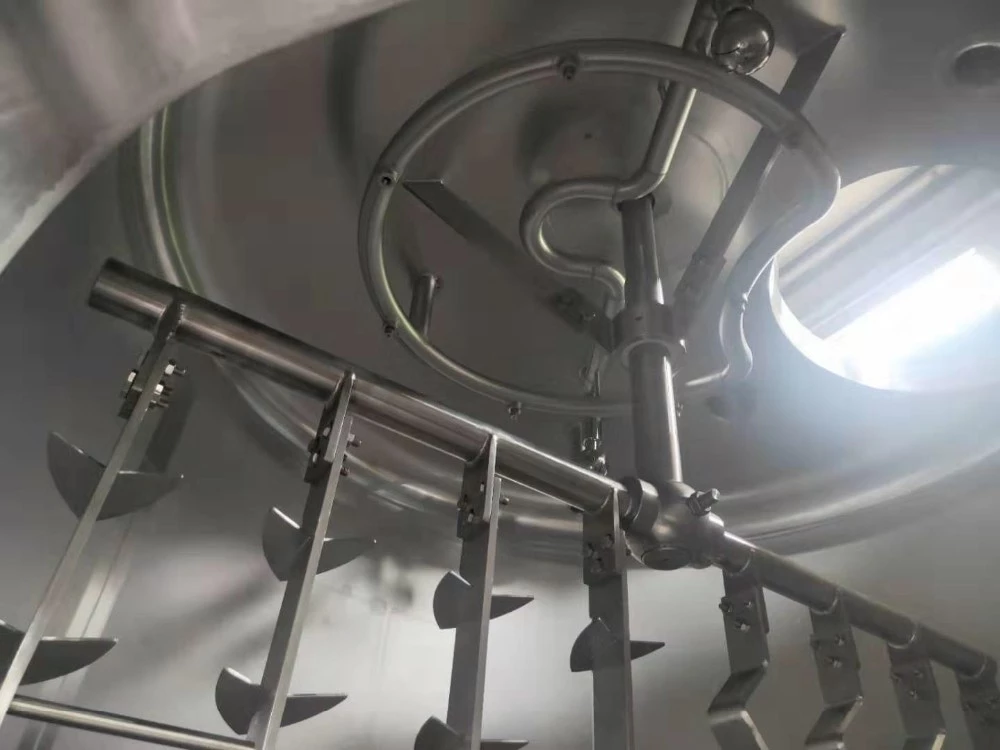

    7:Stir:grain raking,Stir:The upper stirring motor is equipped with a reducer,speed ratio 40;
    8:Heating mode:steam,Dimple Jacket,The tank and cone are heated,Free rising temperature can be achieved;
    9:Sieve plate:Milling machine sieve plate,4.0mm,spacing 0.7;
    10:Cleaning :spray ball,360°;
    11:Grain removal:The side Grain removal;
    12:Cleaning :spray ball,360°;
    13:Sparging device:Ring shape;
    14:Whirlpool :Side entry,Diagonal plane,Formula calculation Angle;
    15:Vent;Top vent;
    16:Thermometry:pt100 sensor,Temperature control digital display;
    17:Level gauge:Mash water feeding and dosing device ;
    18:Internal Pickling passivation;
    19:SUS304;
    Wort kettle
    Whirlpool setting tank
    Mash tun accessories: Steam boiler,Mash pump,Plate heat exchanger,Mash tun pipes,Operation platform,Measuring bucket,Rake,Sugar meter,Malt Milling Unit,Wort thermometer,Yeast propagation,Hops dosing tank,Buffering tank,Oxygen filling device

    Equipments RequestComponents
    1. Milling SystemMalt Miller
    2. Mashing SystemMash/Lauter Tun
    Boiler Tank
    Boiler
    Heat Exchanger
    Wort Pump
    Stiring Device (Optional)
    Other accessories are available: 1. Ornamental Pipe; 2. Mashing Pipeline; 3. Operating Plateform; 4. Yeast Feeder; 5. Venturi Tube; 6. Butterfly Valve DN40; 7. Butterfly Valve DN32; 8. Soft Pipe; 9. Dregs Rake; 10. Sugar Measuring Cylinder; 11. Saccharimeter;
    3. Fermenting SystemFermentation Tank
    Other accessories are available: 1. L-Pipe; 2. Butterfly Valve; 3. Pressure Gage; 4. Solenoid Valve; 5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe;
    4. Cooling SystemIce Water Tank
    Refrigeration Machine
    Centrifugal Pump
    Evaporator
    Ice Water Pump
    Relative Pipes and Valves
    5. CIP SystemWashing Tank
    Sterilization Tank
    Pump and Valve
    6. Filter SystemKieselguhr Filter
    Membrane Filter
    Filtered Beer Tanks
    7. Packing SystemFresh Keg Packing Machine
    Pop Can Packing Machine
    Glass Bottle Packing Machine
    8. Controlling SystemMashing Control Panel
    Fermenting Control Panel
    Refrigerating Control Panel
